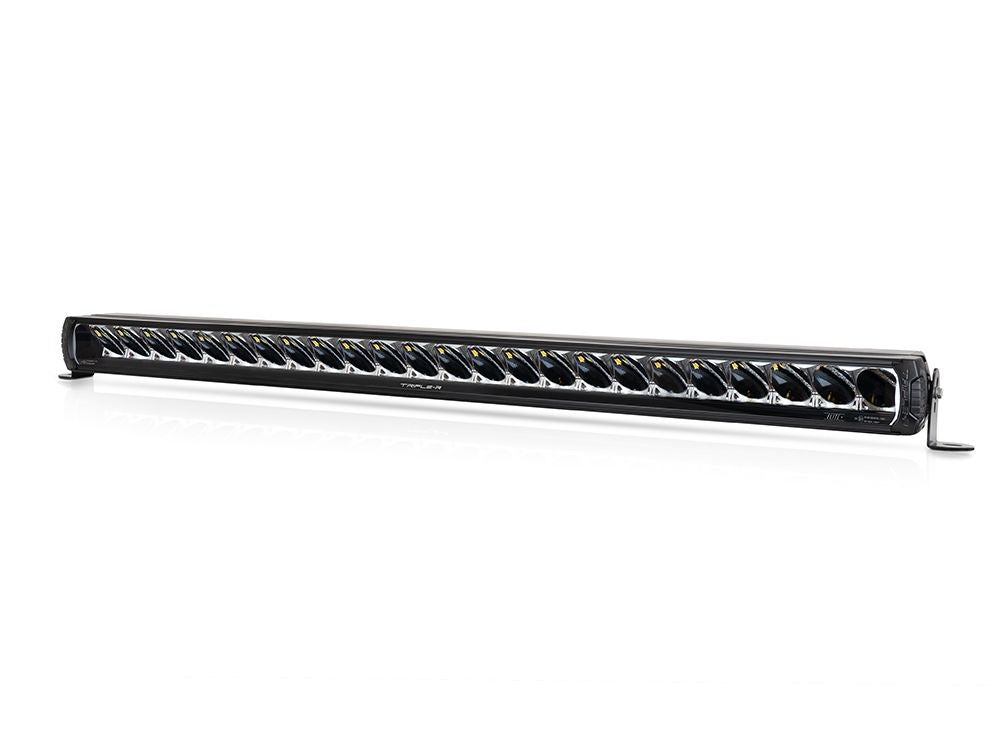

LAZER LAMPS Triple-R 24 Elite+

LAZER LAMPS Triple-R 24 Elite+

Single LED high beam headlight Triple-R 24 ELITE PLUS, including center bracket, 5-year manufacturer's warranty.

LAZER LAMPS Triple-R 24 Elite+

The Elite+ range represents an evolution of our high-performance LED lighting solutions, encompassing products with enhanced performance, light distribution, and functionality. These improvements are achieved in part by the addition of extra yellow LEDs to each light. These can be combined with the already superior white high beam function to deliver impressive nighttime visibility at a slightly softer, more relaxing color temperature. The yellow LEDs can also operate independently, directing the light slightly downwards and to the side of the road or path, making this feature ideal for snow, fog, or dust.

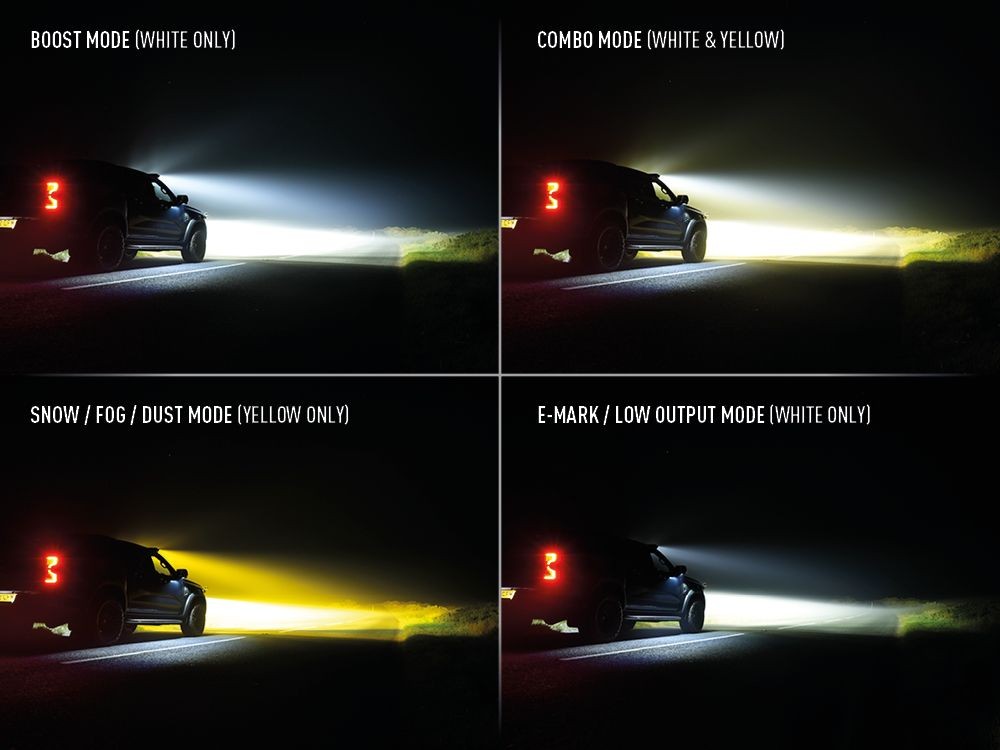

The lights are designed to switch between different lighting modes via a push button. The lighting modes are: Boost (white only), Combo (white + amber), Snow/Fog/Dust Mode (amber only), and E-mark (white only; road legal with reduced power according to UNECE Reg 149). A memory function in the light means that the previously selected mode is retained, for example, when the vehicle is restarted. Holding the button down for 2 seconds immediately switches the light to E-mark mode.

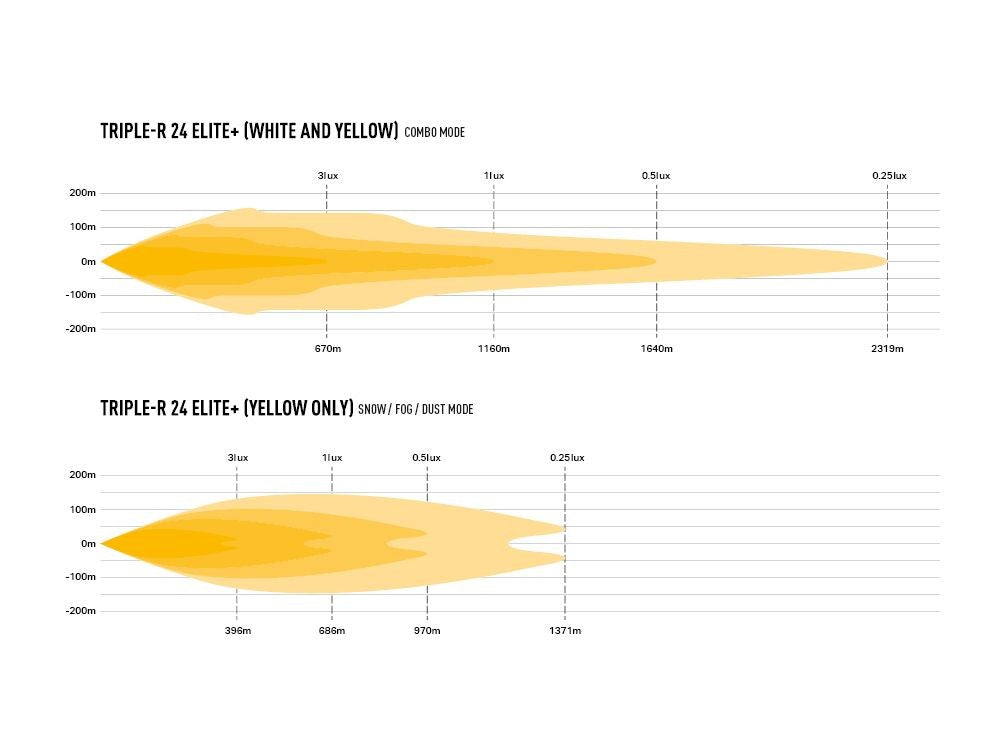

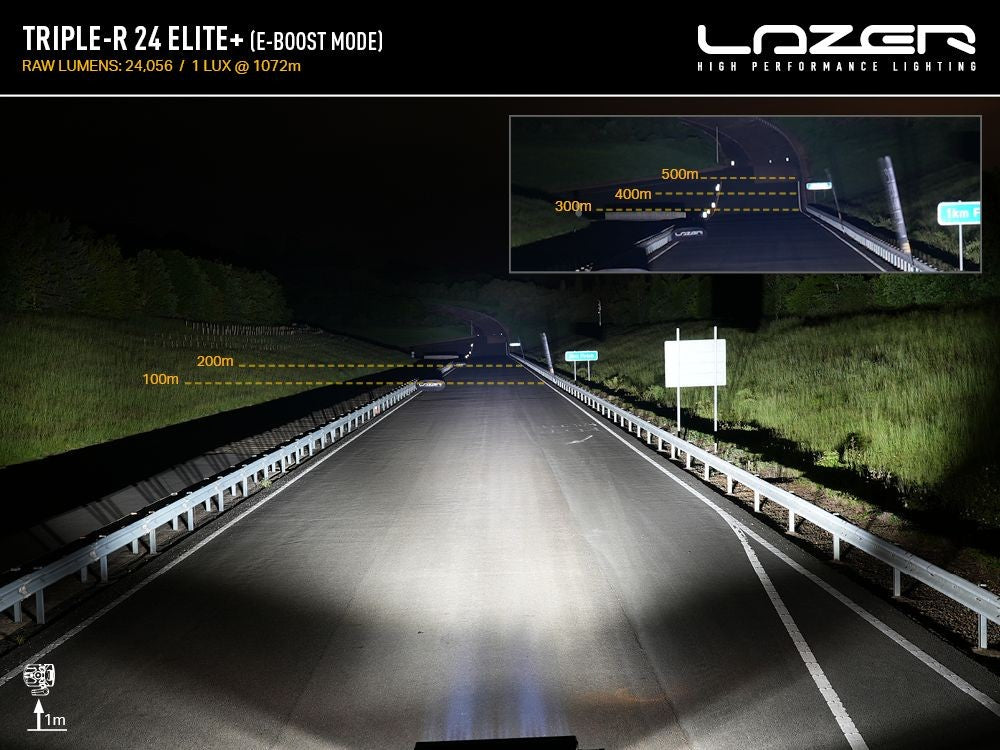

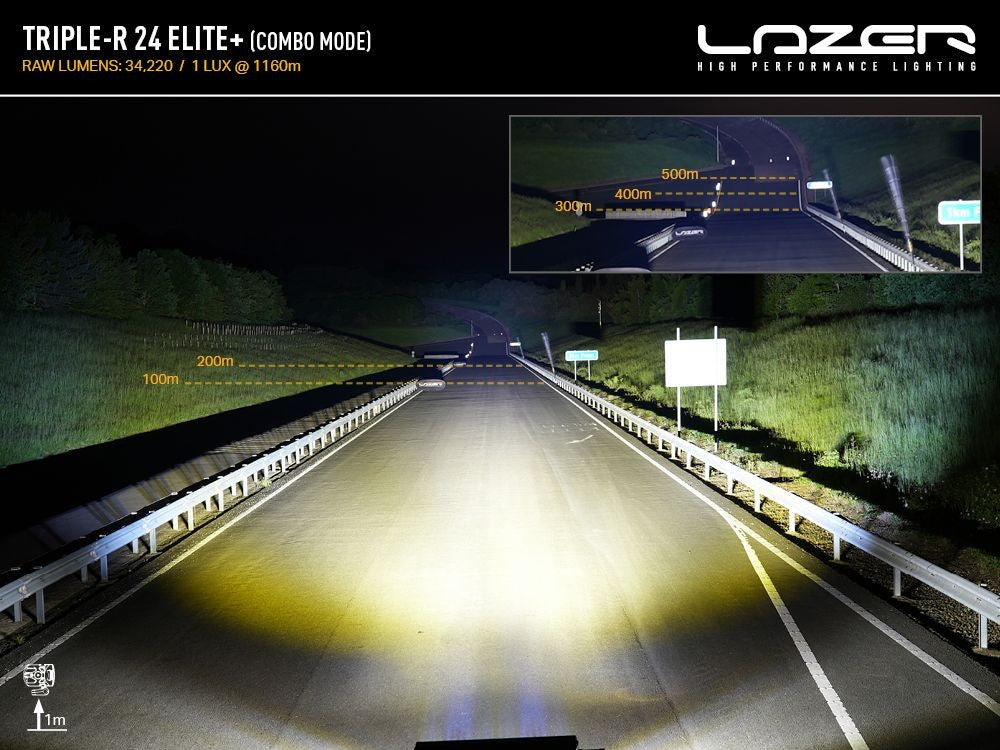

The imposing character of the Triple-R 24 Elite+ is also reflected in the lamp's performance. Thanks to an advanced electronic design, the light consists of a combination of 48 white and 40 yellow LEDs. When the light is operated in boost mode, the white LEDs produce 24,056 raw lumens. When switched to "Combo" mode, the white and yellow LEDs together produce 34,220 raw lumens, providing incredible light output for safer and more enjoyable nighttime driving. The combined power consumption of all LEDs is 340W and the current draw is 26.1 amps (at 14V). To facilitate operation and electrical installation, the lamp features both a 2-pin high-performance Aptiv connector and a 3-pin Superseal connector. Each lamp also includes the corresponding vehicle-side wiring kit. The Aptiv connector controls the high beam operation, while the Superseal connectors are used for function selection and the choice between white and yellow position/taillight modes.

Like all Lazer products, the Elite+ range was designed, engineered, and manufactured in the UK to exacting standards, in terms of performance, reliability, and aesthetics. The light's contemporary design is particularly impressive up close, but the real wow factor comes when you switch it on at night! With our comprehensive 5-year warranty and lifetime lens guarantee, you can be confident that this product will last for years, even in the harshest environments.

Key features

Combination of highly efficient white (5000k) and PC-yellow LEDs.

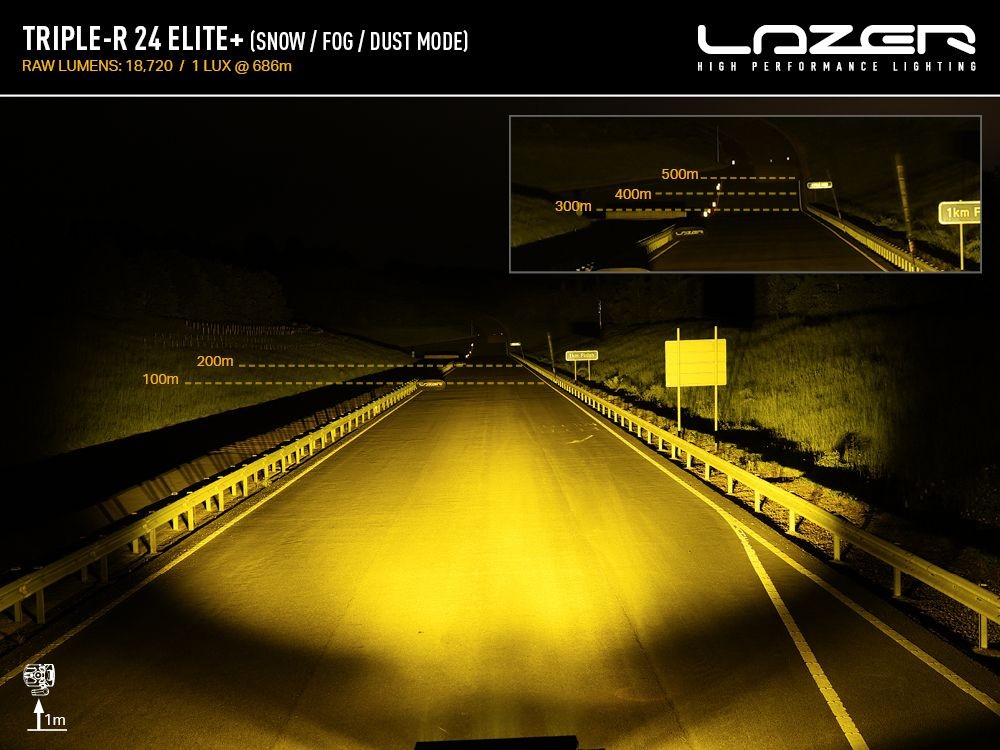

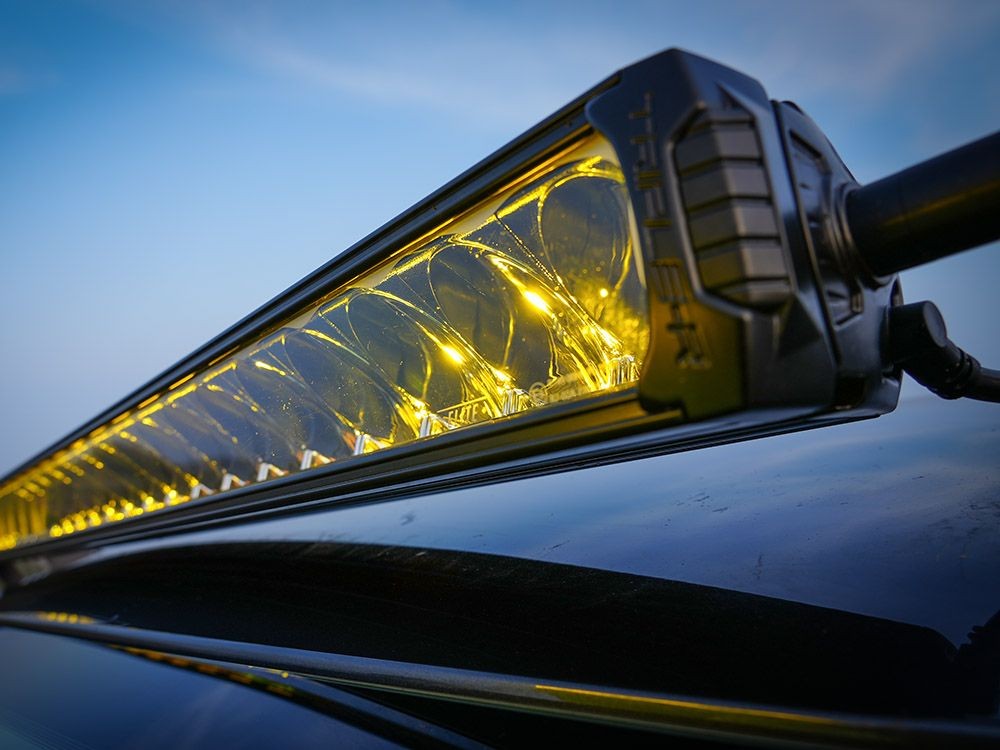

Yellow LEDs are optimized for use in snow, fog and dust.

Integrated white and yellow position light function.

White light ECE-approved according to Reg 149 (Class B, high beam) for use on the road (E-Boost technology) and Reg 148 position/side light function (white only).

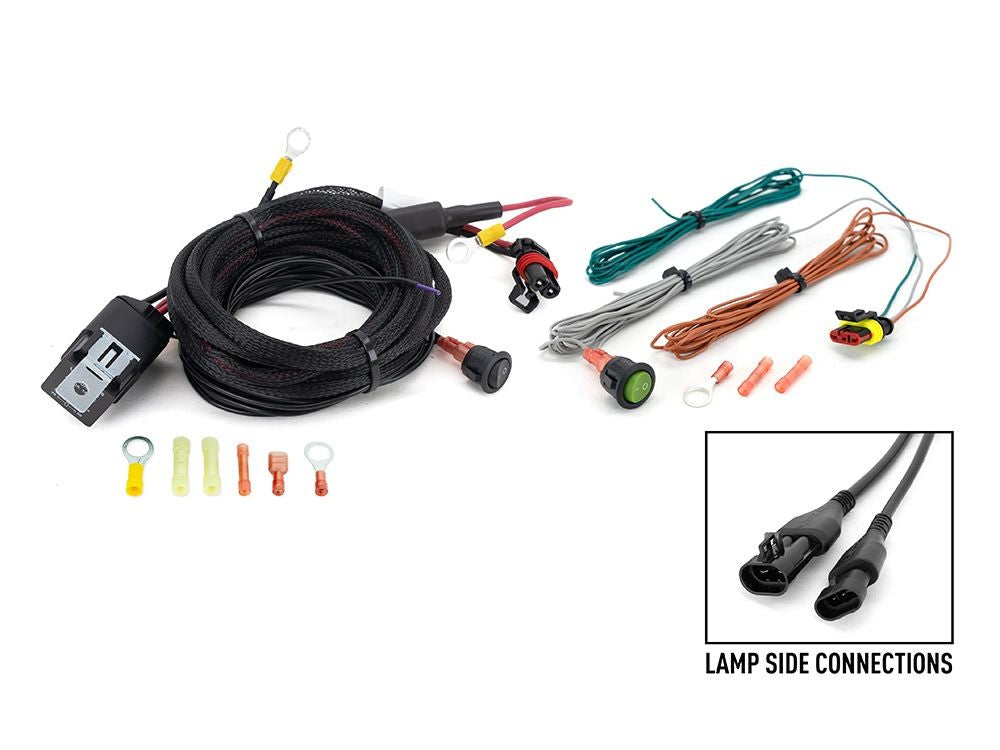

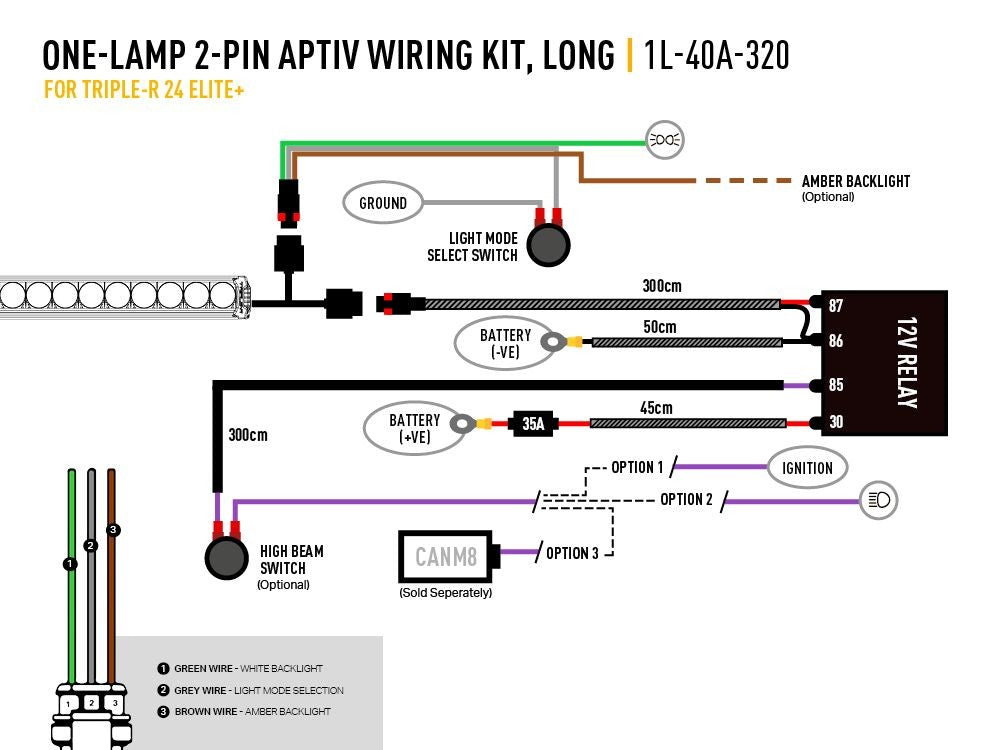

With pre-wired 2-pole Aptiv and 3-pole Superseal connectors (plug/socket).

Comes with a single-lamp wiring kit.

The momentary switch makes it easier to switch between lighting modes.

The memory function recalls the preferred lighting mode without having to select it again for each ride.

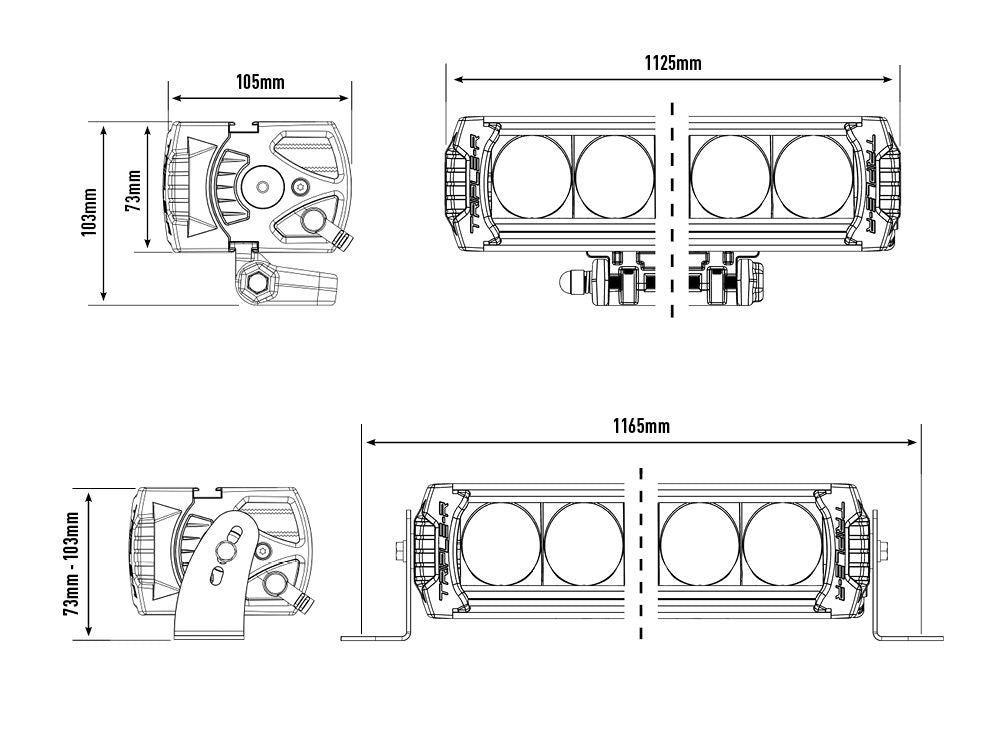

Includes 'Center Mount' and side mounting kit.

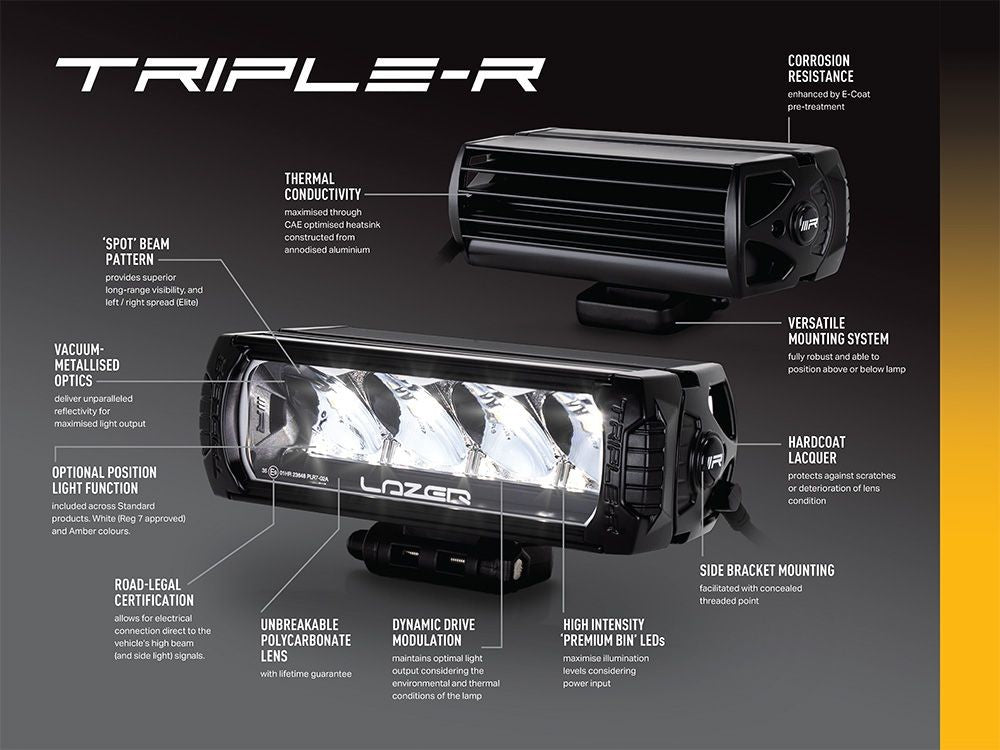

CAE-optimized heat sink offers improved thermal dynamics.

Automotive-grade anodized pretreatment and powder coating for ultimate corrosion and chemical protection.

An electronic thermal management system optimizes light output to ensure the longevity of the LEDs.

"Unbreakable" and hard-coated polycarbonate lens

IP68 waterproof

5-year warranty

Designed and manufactured in Great Britain

These LED headlights are approved as auxiliary lighting according to E9-E11 UNECE 112 in Europe!!!
