LAZER LAMPS grille kit FORD Transit Custom (2024+) GLIDE 18 Elite
LAZER LAMPS grille kit FORD Transit Custom (2024+) GLIDE 18 Elite
Complete set GLIDE 18 Elite, including mounting bracket and cable set, 5-year manufacturer's warranty.
LAZER LAMPS grille kit FORD Transit Custom (2024+) GLIDE 18 Elite
For an OE-quality auxiliary headlight installation, the Lazer Grille Integration Kits include specially designed mounting brackets that allow for quick and seamless installation of the powerful Lazer LED light bars into the front grilles of popular cars, pickups, and light commercial vehicles. The integrated solution is designed to complement the vehicle's original design and is robust, secure, and features added theft protection.
The Ford Transit Custom (2024+) Grille Integration Kit offers a choice of a Glide (Standard/Elite – with or without position lights) high-performance LED light bar. The kit also includes a wiring harness and precision-engineered brackets that fit perfectly into the vehicle's standard front grille. For added durability and stability, self-tapping (plastic) screws are included for secure installation.
The brackets are made from a robust composite material known for its exceptional strength and UV resistance. They are designed to withstand harsh weather conditions and chemical exposure, ensuring a long service life. Furthermore, the kit includes precision cutting guides that simplify the installation process and guarantee a perfect fit every time – without the need to remove the grille or bumper components.
The Ford Transit Custom (2024+) Grille Integration Kit is carefully designed and optimized to ensure seamless compatibility with Glide LED light bars. Our warranty does not cover grille brackets fitted with products from brands other than Lazer Lamps.
Product features:
Special vehicle mounts for seamless integration
Tailor-made for Ford Transit Custom (2024+)
Compatible with Glide LED light bars
The kit also includes custom-made brackets and a cable set.
Cutting guides are included
Mounting brackets made of high-strength, UV-resistant composite material
Fully road legal
5-year warranty
Made in Great Britain
Scope of delivery:
1x radiator grille mounting kit (including cutting templates)
1x LED light strip (Glide)
1x wiring kit for one lamp
Installation instructions
These LED headlights are approved as auxiliary lighting according to E9-E11 UNECE 112 in Europe!!!
Videos
Produkt Eingenschaften
Technische Daten
| Eigenschaft | 2x GLIDE (Boost Mode) |
|---|---|
| ALLGEMEIN | |
| Spannungsbereich (DC) | 10-32V |
| LED-Lebensdauer | 50.000 Stunden |
| Gewicht | 0,68 kg (pro Lampe) |
| FERNLICHT-FUNKTION | |
| Gesamtlichtstrom | 23.000 Lm |
| Gesamtlichtstrom im Fahrer-FOV | 13.916 Lm |
| Farbtemperatur | 5000K |
| Leistungsaufnahme | 240 Watts |
| Spitzenstromaufnahme | 19,2 Amps |
| Stromaufnahme (14,4 V) | 16,6 Amps |
| Anschluss | 2-Pin Superseal (+25 cm Cable) |
| ZERTIFIZIERUNG | |
| IP-Bewertung | IP68 |
| Fernlicht (E9-Zulassung) | ECE R149 (Double E-Mark) - Ref: 2x 12.5 (Low Output Mode, pro Lampe) |
| EMC-Zertifizierung | ECE R10 |
| Salzsprühtest | ISO 9227 |
| Dump-Lastschutz | ISO 7637-2 |

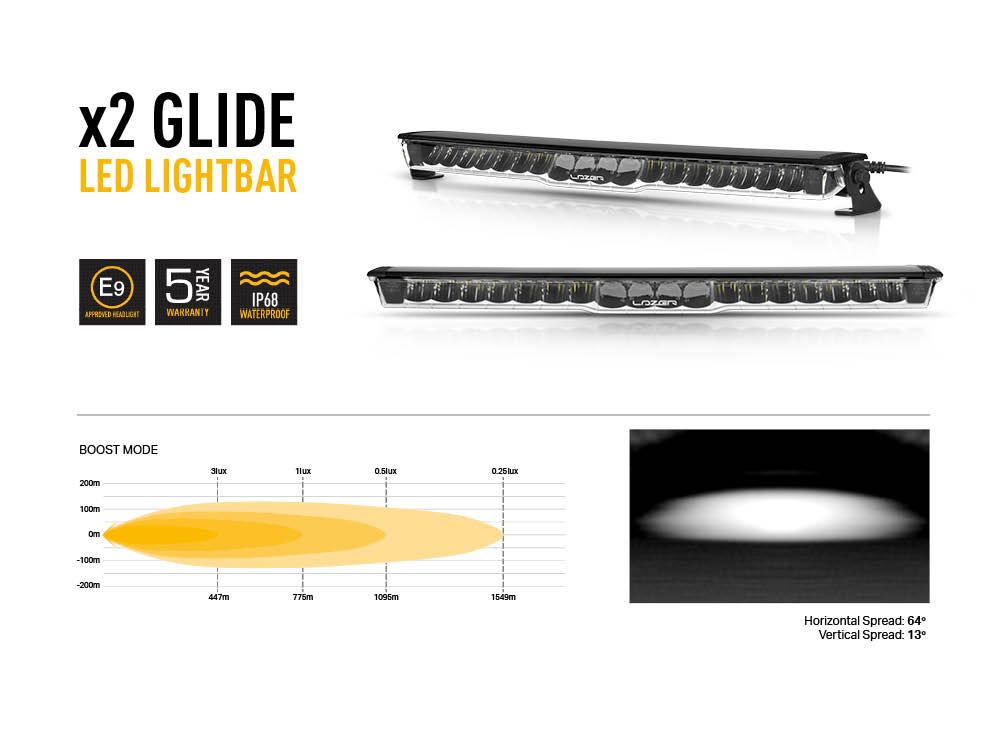

| LICHTTECHNISCHE DATEN | |
| Horizontaler/Vertikaler Strahlwinkel | 64° / 13° |
| 0,25-Lux-Linie | 1549 m |
| 0,5-Lux-Linie | 1095 m |
| 1-Lux-Linie | 775 m |
| 3-Lux-Linie | 447 m |
