LAZER LAMPS Linear 36 Elite
LAZER LAMPS Linear 36 Elite
LED auxiliary headlights Lightbar Linear 36 Elite, including mounting kit, 5-year manufacturer's warranty.
LAZER LAMPS Linear 36 Elite
LED auxiliary headlights with E-mark. 36 x 3-watt LEDs. Range-optimized light distribution. For road use.
The Linear-36 Elite is an ECE-approved LED auxiliary headlight, developed through the development and testing at the highest level of professional motorsport.
Measuring 982mm (39") in length, the Linear-36 Elite features 36 high-performance LEDs with a color temperature of 5000 Kelvin. With a total output of 29,700 lumens and thanks to its ultra-reflective, vacuum-metallized optics, the headlight achieves 1 lux at 1423 meters. The Lazer Lamps Linear-36 Elite headlight offers an incredibly wide, lateral beam pattern, providing a comfortable riding experience, especially at night, all while remaining within legal limits for road use.
When mounted on the roof, the LEDs project a perfect light pattern. Glare, which can occur on the vehicle's hood when mounted on the roof, is virtually eliminated. The slim housing minimizes wind noise at high speeds.
Designed and manufactured in Great Britain. The hard-coated polycarbonate lens comes with a lifetime warranty. Corrosion resistance and theft protection with a stainless steel bracket ensure a beautiful, high-end look.
Scope of delivery:
1x Linear-36 Elite LED Headlight
1 x Anti-theft mounting kit (1127k)

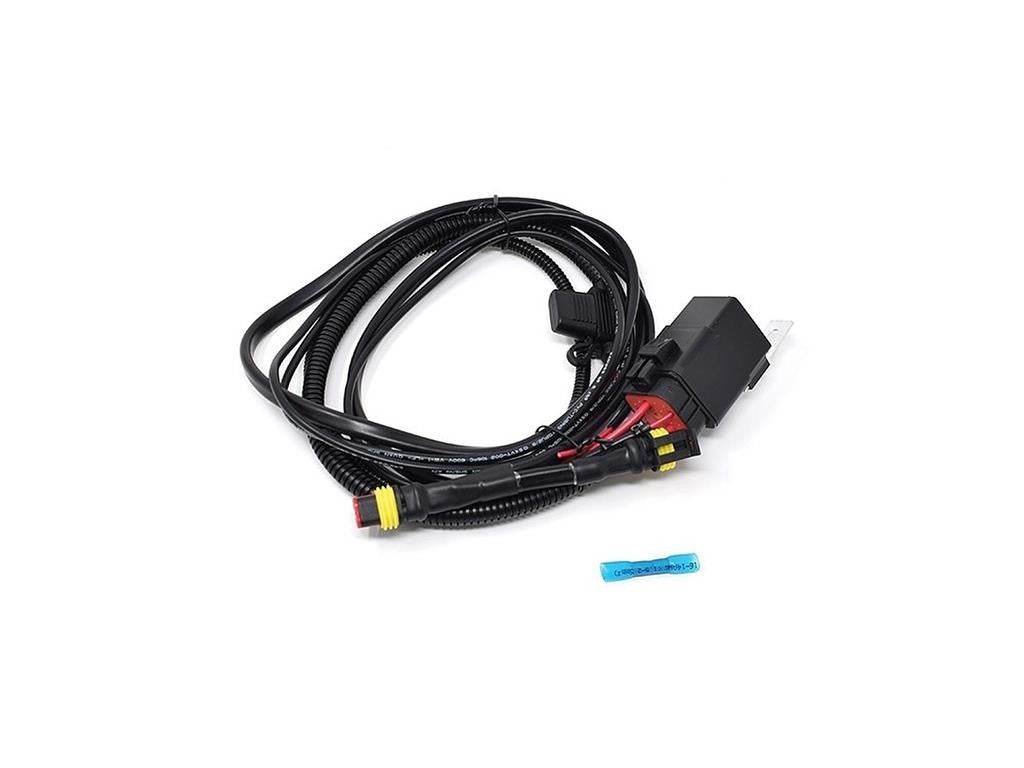

1x cable set and assembly instructions

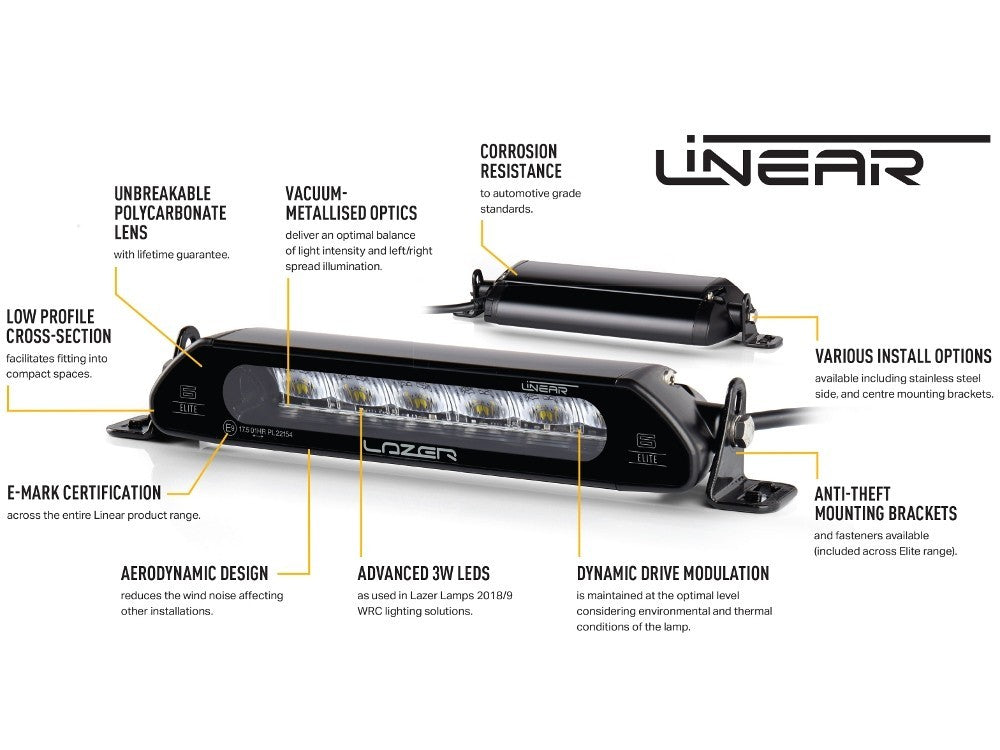

Key features
Aerodynamic design eliminates wind noise from rooftop systems
Highly efficient LED technology
Modern design improves the vehicle's appearance.
Corrosion resistance
Reduced light propagation eliminates glare from rooftop installations.
ECE-approved LED auxiliary headlight
Anti-theft device included as standard
Electronic thermal management
Hard-coated polycarbonate lens with a lifetime warranty.
IP67 waterproof
5-year warranty
Plug connector (male/female)
Designed and manufactured in Great Britain
These LED headlights are approved as auxiliary lighting according to E9-E11 UNECE 112 in Europe!!!
Videos
Produkt Eingenschaften
Technische Daten
| Eigenschaft | Wert |
|---|---|
| ALLGEMEIN | |
| Spannungsbereich (DC) | 10-32V |
| LED-Lebensdauer | 50.000 Stunden |
| Gewicht | 2,7 kg |
| FERNLICHT-FUNKTION | |
| Gesamtlichtstrom | 13.500 Lm |
| Gesamtlichtstrom im Fahrer-FOV | 9.612 Lm |
| Farbtemperatur | 5000K |
| Anzahl Hochleistungs-LEDs | 36 |
| Leistungsaufnahme | 126 Watts |
| Stromaufnahme (14,4 V) | 8,8 Amps |
| ZERTIFIZIERUNG | |
| Fernlicht | ECE R112 |
| ECE-Referenz | 2x 30 |

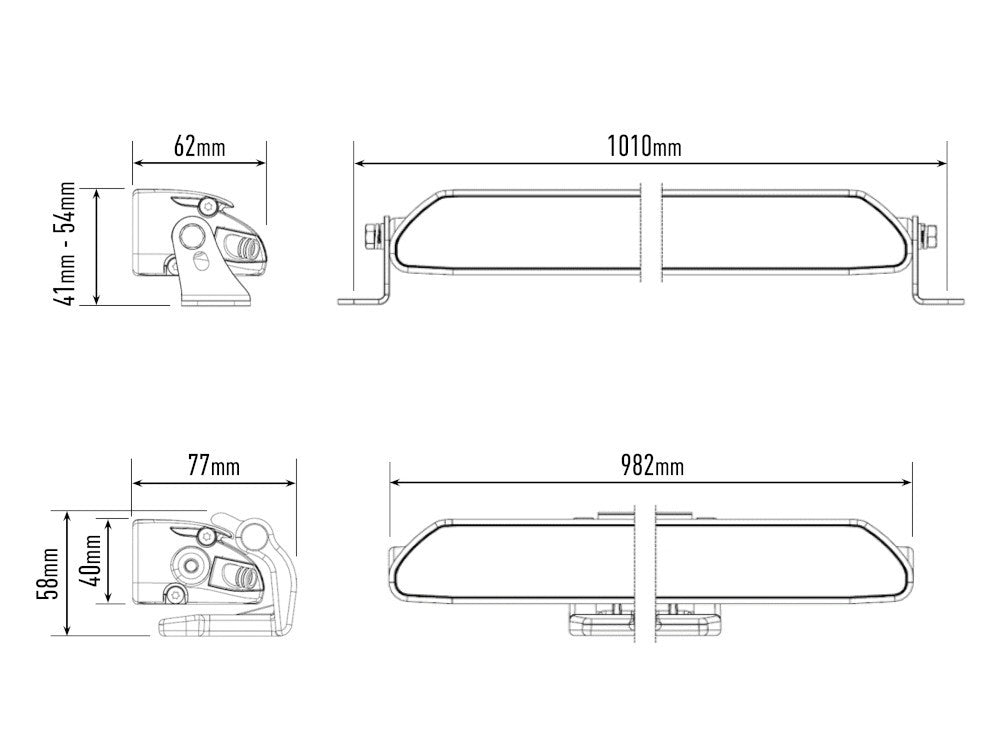

| ABMESSUNGEN | |
| Breite | 982 mm |
| Tiefe | 62 mm |
| Höhe | 40 mm |
| LICHTTECHNISCHE DATEN | |
| Horizontaler Abstrahlwinkel | 50° |
| 0,25-Lux-Linie | 940 m |
| 0,5-Lux-Linie | 665 m |
| 1-Lux-Linie | 470 m |
| 3-Lux-Linie | 271 m |
