LAZER LAMPS Linear 24 flood

Single LED floodlight Linear 24 Flood, including mounting kit, 5-year manufacturer's warranty.

LAZER LAMPS Linear 24 flood

LED floodlight with E-mark. 48 x 3-watt LEDs. Range-optimized light distribution. For road use.

The Linear-24 Flood was specifically designed for agricultural, forestry, and construction machinery, offering outstanding light output optimized for heavy-duty equipment. Like all Lazer products, the floodlight is manufactured in the UK and boasts exceptional durability and reliability, even in the harshest environments.

The Linear-24 Flood produces 16,200 lumens, which, within its ultra-reflective, vacuum-metallized optics, delivers a unique "zonal" beam pattern, making it particularly suitable for mining, forestry, and agriculture. The high luminous intensity provides an unparalleled level of illumination in the direct area, which, combined with the side illumination, creates an optimal working environment. With a color temperature of 5000 Kelvin, the light also enhances the clarity of the immediate surroundings.

With a power consumption of 168W, the headlight is a much simpler solution than mounting several smaller headlights.

The Linear-24 Flood comes with a 2-year warranty. The hard-coated polycarbonate lens has a lifetime warranty. Dynamic Drive Modulation optimizes the lifespan of the LED lights. Designed and manufactured in the UK.

Scope of delivery:

1x Linear 24 flood LED headlight

1 x assembly kit

and assembly instructions

Key features

Economical solution for daily road use

Vacuum metallized optics ensure wide light dispersion.

Reduced light propagation, suitable for lower mounting positions

Highly efficient LED technology

Easy assembly

Electronic thermal management

Hard coated polycarbonate lens

Anodized aluminum heat sink ensures improved thermal dynamics

ECE-approved LED auxiliary headlight

IP67 waterproof

5-year warranty

Plug connector (male/female)

Designed and manufactured in Great Britain

These LED headlights are approved as auxiliary lighting according to E9-E11 UNECE 112 in Europe!!!

Videos
Produkt Eingenschaften

Hochleistungs-Arbeitsscheinwerfer für Industrieanwendungen.

Verwendet die neueste, hocheffiziente LED-Technologie.

Die maßgeschneiderte Anordnung der vakuum-metallisierten Optik sorgt für eine „zonale“ Beleuchtung.

Optimierte Lichtleistung für außergewöhnliche Beleuchtungsstärken in unmittelbarer (< 20 m) Arbeitsumgebung.

Farbtemperatur – 5000 Kelvin.

Geliefert mit seitlichen Halterungen aus Edelstahl.

Elektronisches Wärmemanagement

Bruchsichere Polycarbonat-Linse

Wasserdicht gemäß IP68

Technische Daten
Eigenschaft Wert
ALLGEMEIN
Spannungsbereich (DC) 10-32V
LED-Lebensdauer 50.000 Stunden
Gewicht 1500 g
LICHTFUNKTION
Gesamtlichtstrom 16.200 Lm
Gesamtlichtstrom im Fahrer-FOV 11.534 Lm
Farbtemperatur 5000K
Anzahl Hochleistungs-LEDs 48
Leistungsaufnahme 168 Watts
Stromaufnahme (14,4 V) 11,7 Amps
ZERTIFIZIERUNG
Arbeitslampe ECE R10
IP-Bewertung IP68 / IP69K
Salzsprühtest ISO 9227 (2000h)
EMV-Schutz CISPR-25 (Class 3)
BETRIEBSBEDINGUNGEN
Betriebstemperatur -40°C … +90°C
Vibration (BS EN 60068) 10Hz > 1000Hz, 0,14 > 20 (m/s²)²/Hz

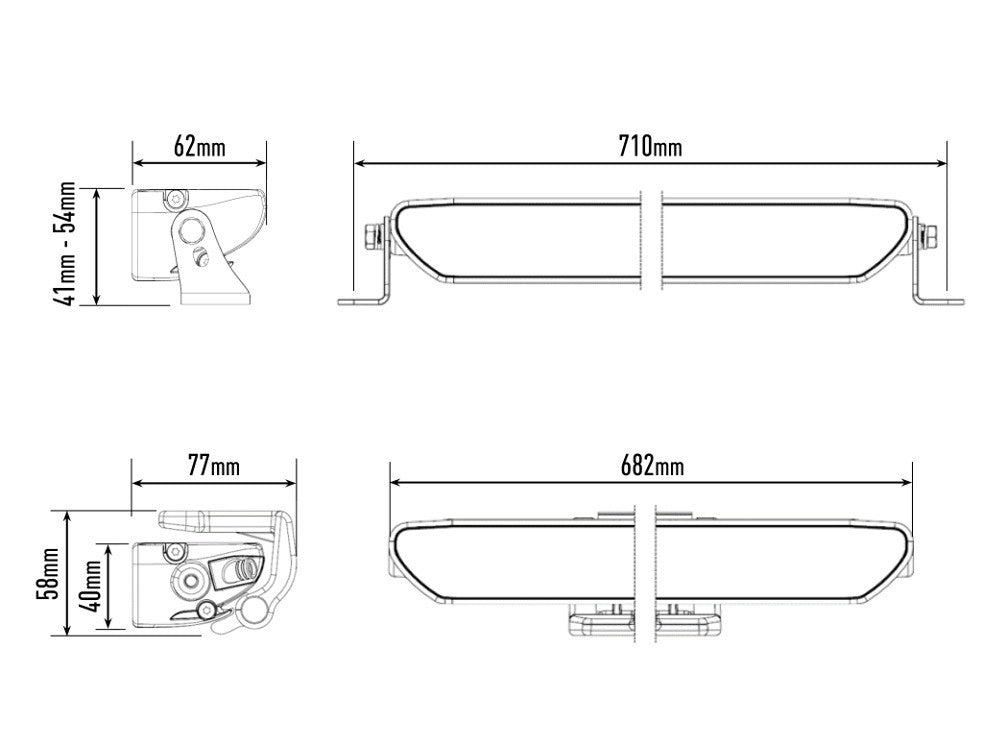

ABMESSUNGEN
Breite 682 mm
Tiefe 62 mm
Höhe 40 mm

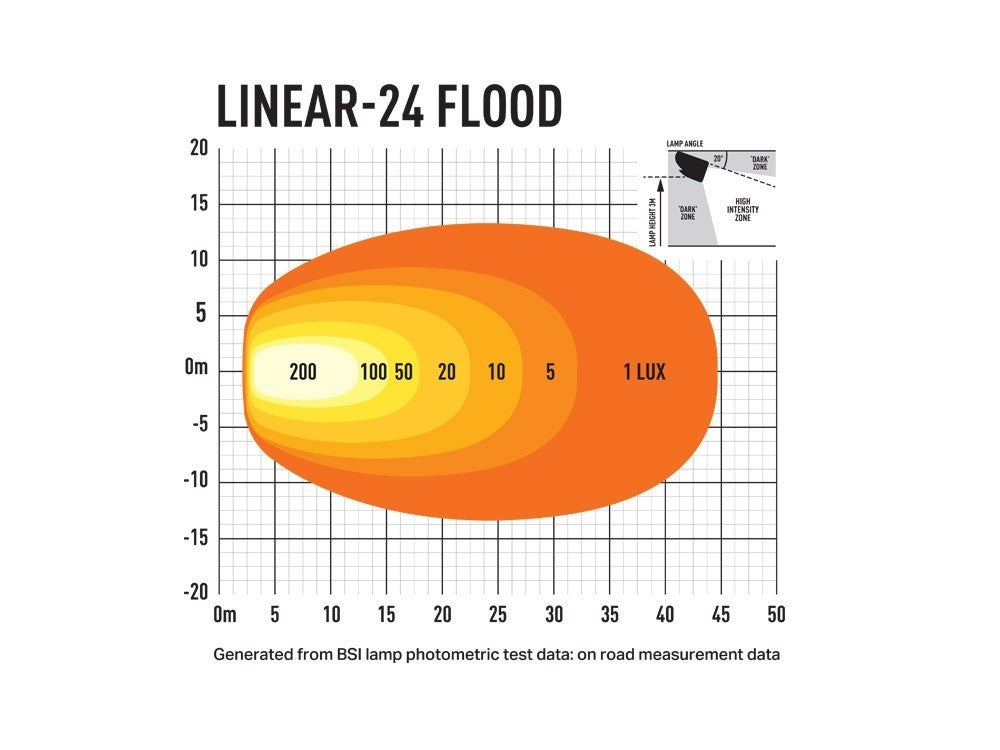

LICHTTECHNISCHE DATEN
1-Lux-Linie 44 m
5-Lux-Linie 33 m
20-Lux-Linie 23 m
50-Lux-Linie 18 m
Lieferumfang

x1 Linear-24 Flood LED-Arbeitsleuchte
x1 Diebstahlsicheres Halterungen-Set für die seitliche Montage (1127K)
