Lazer Lamps Grille Kit for Ford Ranger Platinum 2023+ incl. 2x Triple-R 750 G2

Lazer Lamps Grille Kit for Ford Ranger Platinum 2023+ incl. 2x Triple-R 750 G2

Wide
€660,00 EUR
Sale price  €660,00 EUR Regular price
Skip to product information
Lazer Lamps Grille Kit for Ford Ranger Platinum 2023+ incl. 2x Triple-R 750 G2
1/7

Lazer Lamps Grille Kit for Ford Ranger Platinum 2023+ incl. 2x Triple-R 750 G2

€660,00 EUR
Sale price  €660,00 EUR Regular price
Taxes included. Shipping calculated at checkout.
In stock
LL-GK-FR-09K-E-1
Type of light

Lazer Lamps Grille Kit for Ford Ranger Platinum 2023+ including 2x Triple-R 750 Gen2 Wide - Standard - Elite or Beacon

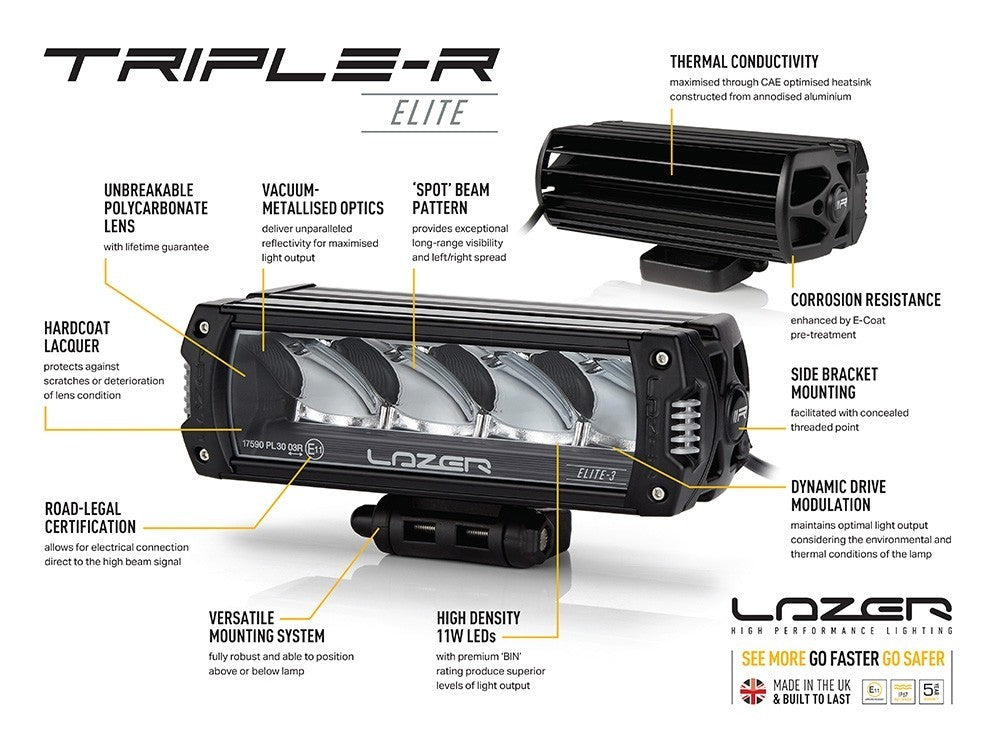

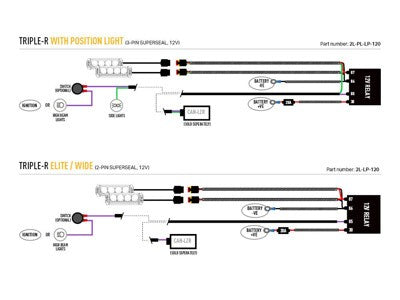

Complete set including grille mounting kit and two Triple-R 750 Gen2 LED headlights (STD/Elite/Wide or Beacon). The STD and Beacon models feature position lights in white or amber. For easy wiring, a wiring harness (automatic, solder connectors) and the specific grille mounting kit are included.

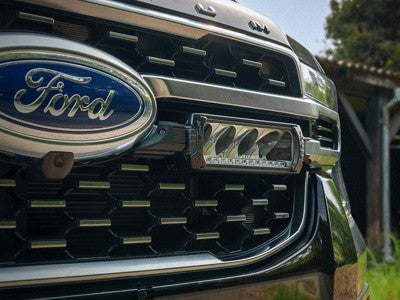

The grille mounting kits are the perfect solution for easily installing Lazer Lamps LED headlights in the vehicle's original grille. The kit integrates seamlessly into the vehicle's styling and is exceptionally robust. It is made from ASA material, which offers excellent strength and UV stability. This makes the mounting kit completely weatherproof and chemical-resistant, ensuring it remains in pristine condition for years to come.

Depending on the model, installation is carried out using Allen or self-tapping plastic screws and four precision-machined brackets that fit perfectly onto the vehicle's standard radiator grille. Appropriate cutouts must be made in the radiator grille for installation.

Scope of delivery:

2 Triple-R 750 Gen2 of your choice

1 cable set (automatic, solder connectors)

4 custom-made brackets including all necessary fixings

Assembly instructions

Made from high-strength, UV-stable ASA material

5-year warranty

These LED headlights are approved as auxiliary lighting according to E9-E11 UNECE 112 in Europe!!!

Technical data

2x
TRIPLE-750
WIDE

2x
TRIPLE-R 750

2x TRIPLE-R 750
BEACON
(BOOST MODE)

2x
TRIPLE-R 750 ELITE
(BOOST MODE)

Voltage range (DC) 10-32V 10-32V 10-32V 10-32V
LED lifespan 50,000 hours 50,000 hours 50,000 hours 50,000 hours
Weight 2.6 kg 2.6 kg 2.6 kg 2.6 kg

HIGH BEAM FUNCTION
Total luminous flux 9240 Lm 9240 Lm 10800 lm

10136 Lm

Total luminous flux in the driver's FOV † 5266 Lm 5572 Lm 2484 Lm 6680 Lm
Color temperature 5000K 5000K 5000K 5000K
Power consumption 88 W 88 W 104 W 104 W
Power consumption (14.4 V) 6.2 A 6.2 A 7.4 A 7.2 A
Connection 2-Pin Superseal
(+25 cm cable)
3-Pin Superseal
(+25 cm cable)
6-Pin Superseal
(+25 cm cable)
2-Pin Superseal
(+25 cm cable)

CERTIFICATION
IP rating # IP68 IP68 IP68 IP68
High beam
(E9 approval)
ECE R149 - Ref: 2x 20 ECE R112 - Ref: 2x 35 ECE R149 - Ref: 2x 10 (Low Output Mode) ECE R112 - Ref: 2x 12.5
(Low Output Mode)
Position light (white) N/A ECE R7 ECE R7 N/A
EMC certification ECE R10 ECE R10 ECE R10 ECE R10
Salt spray test ISO 9227 ISO 9227 ISO 9227 ISO 9227
Dump load protection ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2

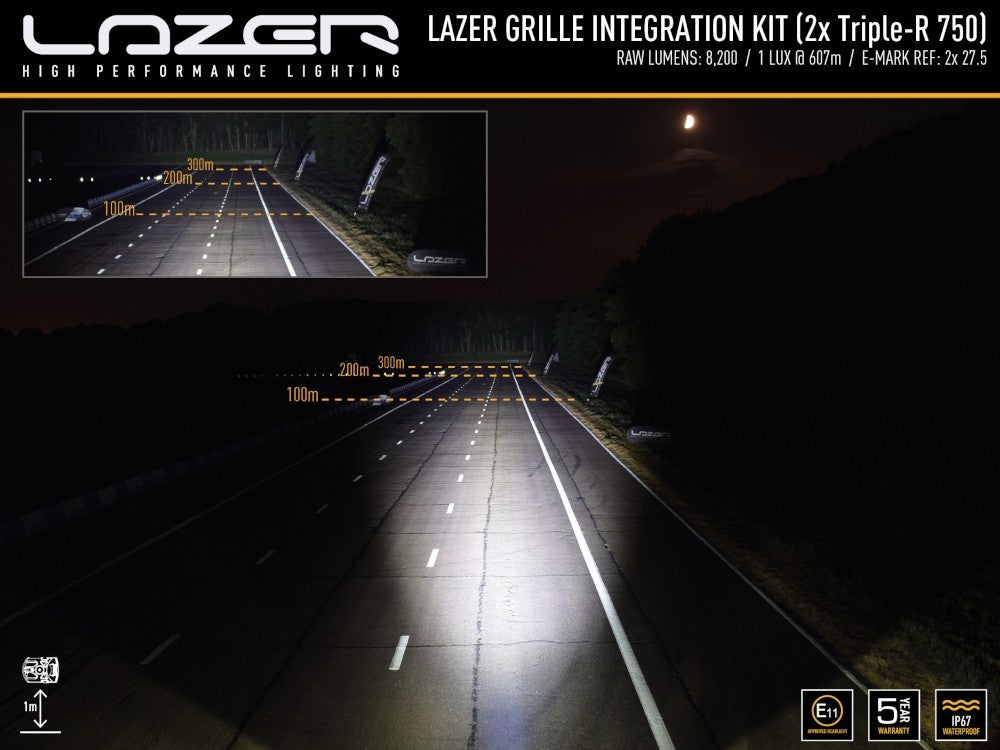

LIGHTING TECHNICAL DATA
Horizontal/Vertical beam angle 40° / 20° 19° / 18° 28° / 16° 42° / 13°
0.25 lux line 829 m 1225 m 1249 m 1358 m
0.5 lux line 587 m 866 m 883 m 960 m
1-Lux line 415 m 612 m 624 m 679 m
3-Lux line 239 m 354 m 361 m 392 m

† - The luminous flux in the driver's FOV is a measure of the effective lumen output taking into account the amount of light in the driver's field of vision, defined as a range of +/- 45° left/right and +/- 10° up/down.

# - All Lazer products are designed to meet IP68 testing requirements. Every lamp manufactured in our UK factory is fully submerged in water before shipping.

Videos
Produkt Eingenschaften

Fahrzeugspezifische Halterungen für eine nahtlose Grillintegration im OE-Stil

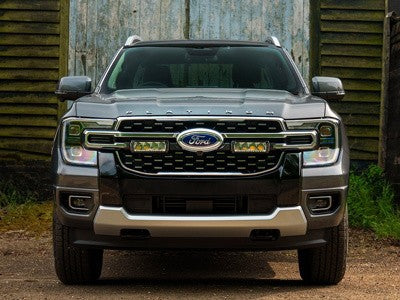

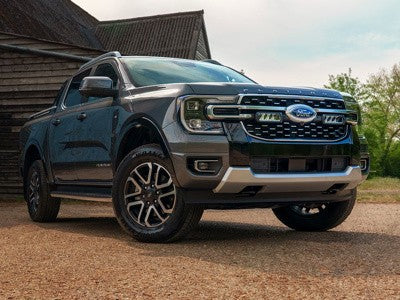

Passgenaue Ausführung für Ford Ranger Platinum (2023+)
Entwickelt für die Verwendung mit Triple-R 750 LED-Scheinwerfern – Standard-, Wide-, Beacon- und Elite-Varianten
Beinhaltet präzisionsgefertigte Halterungen und einen Kabelsatz für zwei Lampen
Wird geliefert mit Schneideschablonen und diebstahlsicheren Befestigungen für eine sichere, professionelle Montage
Halterungen aus hochfestem, UV-beständigem Verbundmaterial gefertigt
Vollständig straßenzugelassen und ECE-konform
Abgedeckt durch eine umfassende 5-Jahres-Garantie
Entworfen und hergestellt in Großbritannien

Technische Daten
Eigenschaft 2x TRIPLE-750 WIDE 2x TRIPLE-R 750 2x TRIPLE-R 750 BEACON (Boost Mode) 2x TRIPLE-R 750 ELITE (Boost Mode)
ALLGEMEIN
Spannungsbereich (DC) 10-32V 10-32V 10-32V 10-32V
LED-Lebensdauer 50.000 Stunden 50.000 Stunden 50.000 Stunden 50.000 Stunden
Gewicht 2,6 kg 2,6 kg 2,6 kg 2,6 kg
FERNLICHT-FUNKTION
Gesamtlichtstrom 9240 Lm 9240 Lm 10800 Lm 10136 Lm
Gesamtlichtstrom im Fahrer-FOV 5266 Lm 5572 Lm 2484 Lm 6680 Lm
Farbtemperatur 5000K 5000K 5000K 5000K
Leistungsaufnahme 88 W 88 W 104 W 104 W
Stromaufnahme (14,4 V) 6,2 A 6,2 A 7,4 A 7,2 A
Anschluss 2-Pin Superseal (+25 cm Cable) 3-Pin Superseal (+25 cm Cable) 6-Pin Superseal (+25 cm Cable) 2-Pin Superseal (+25 cm Cable)
ZERTIFIZIERUNG
IP-Bewertung IP68 IP68 IP68 IP68
Fernlicht (E9-Zulassung) ECE R149 - Ref: 2x 20 ECE R112 - Ref: 2x 35 ECE R149 - Ref: 2x 10 (Low Output Mode) ECE R112 - Ref: 2x 12.5 (Low Output Mode)
Positionslicht (weiß) N/A ECE R7 ECE R7 N/A
EMC-Zertifizierung ECE R10 ECE R10 ECE R10 ECE R10
Salzsprühtest ISO 9227 ISO 9227 ISO 9227 ISO 9227
Dump-Lastschutz ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2
LICHTTECHNISCHE DATEN
Horizontaler/Vertikaler Strahlwinkel 40° / 20° 19° / 18° 28° / 16° 42° / 13°
0,25-Lux-Linie 829 m 1225 m 1249 m 1358 m
0,5-Lux-Linie 587 m 866 m 883 m 960 m
1-Lux-Linie 415 m 612 m 624 m 679 m
3-Lux-Linie 239 m 354 m 361 m 392 m
Lieferumfang

2x Triple-R 750 Gen2 nach Wahl
1x Kabelsatz (Automatik, Lötverbinder)
4x maßgeschneiderte Halterungen inkl. aller notwendigen Befestigungen
Montageanleitung
Aus hochfestem, UV-stabilem ASA-Material
